Plate Tectonics

Overview of Plate Tectonics & Plate Boundaries

This image shows the three main types of plate boundaries: divergent, convergent, and transform. Image courtesy of the U.S. Geological Survey. Note that the lithosphere is the crust, although it may seem like a separate entity in the diagram.

Plate tectonics theory describes how the lithosphere (crust) of the Earth is broken into various plates. These plates drift on the asthenosphere (between the Earth’s crust and upper mantle) at very slow rates. As plates move away from each other the lithosphere thins and tears.

Content
Divergent Plate Boundaries
Transform Plate Boundaries
Fracture Zones
Convergent Plate Boundaries
Oceanic-Oceanic Convergence
Oceanic-Continental Convergence
Continental-Continental Convergence
Hotspots

At these divergent plate boundaries new oceanic lithosphere is created in the gaps from upwelling magma from the mantle. This upwelling magma forms mid-ocean ridges, long mountain chains that mark the boundaries between diverging plates.

The static size of the Earth implies that crust must be destroyed at about the same rate it is being created. Plate tectonics provides the mechanism to recycle the Earth’s crust. Destruction (recycling) of crust takes place along convergent boundaries where plates are moving toward each other, and sometimes one plate sinks (is subducted) beneath another. The location where the sinking of a plate occurs is called a subduction zone.

A transform boundary is where plates slide past each other with no creation or destruction of lithosphere.

Divergent Plate Boundaries

Divergent Plate Boundaries, from USGS & IRIS.
Divergent Plate Boundaries, from USGS & IRIS. Note that the lithosphere is the crust, although it may seem like a separate entity in the diagram.

Divergent boundaries occur where plates are moving apart. Hot mantle rock rises, and partial melting occurs. New crust is created by the magma pushing up from the mantle, creating elevated regions. These elevated regions can be considered continental rift zones or mid-ocean ridges, depending on whether the lithosphere is capped by continental or oceanic crust. At these boundaries, fissures, normal faults, rift valleys and mountain ranges (due to volcanoes) can occur.

Continental Rift Zones such as the East African Rifts, occur when the continent pulls apart, stretching and thinning the crust. The underlying asthenospehere is hot and buoyant, causing the area to rise to high elevations. The upper part of the crust, as it is cold and brittle, deforms. This deformation causes earthquakes, elevated ridges (horsts) and down-dropped valleys (grabbens). Grabbens can fill up with sediments due to erosion of horsts and volcanic activity, forming basins.

Top) Continental Rift Zone, forming a rift valley. (Middle) Divergent boundary forming a new ocean basin, such as the Red Sea, separating Saudi Arabia from Africa. (Bottom) A mature divergent boundary, forming a mid-ocean ridge such as the Mid-Atlantic Ridge.
(Top) Continental Rift Zone, forming a rift valley. (Middle) Divergent boundary forming a new ocean basin, such as the Red Sea, separating Saudi Arabia from Africa. (Bottom) A mature divergent boundary, forming a mid-ocean ridge such as the Mid-Atlantic Ridge. Image: GeologyIn

Mid-Ocean Ridges such as the Mid-Atlantic Ridge, occurs when continents completely rift apart. As continents continue to pull apart, the buoyant asthenosphere elevates a ridge on the seafloor that may be 100’s to up to 4000 kilometers wide. Although the ridge is quite hot, the upper part of the oceanic crust is cold and brittle. This causes earthquakes and normal faulting. Chains of mid-ocean ridges, including the Mid-Atlantic Ridge, East Pacific Rise and the Indian Ocean Ridge extends in a near continuous fashion for more than 50,000 kilometers, making it the longest mountain range on Earth, even though it is mostly covered by water.

Advertisements

Transform Plate Boundaries

Transform Plate Boundaries, from USGS & IRIS.
Transform Plate Boundaries, from USGS & IRIS. Note that the lithosphere is the crust, although it may seem like a separate entity in the diagram.

At a transform plate boundary, two plates are sliding past one another laterally. At shallow levels (generally above 50 kilometers depth), this is occurring across Trinidad with the South American Plate and the Caribbean Plate sliding past one another. However, there is not a clear transform boundary similar to the San Andreas Fault Zone, another transform boundary in the Western United States. In Trinidad, this strike-slip motion is compensated with a vast network of strike-slip, normal fault and a few thrust or reverse faults across the island and surrounding seas.

Fracture Zones

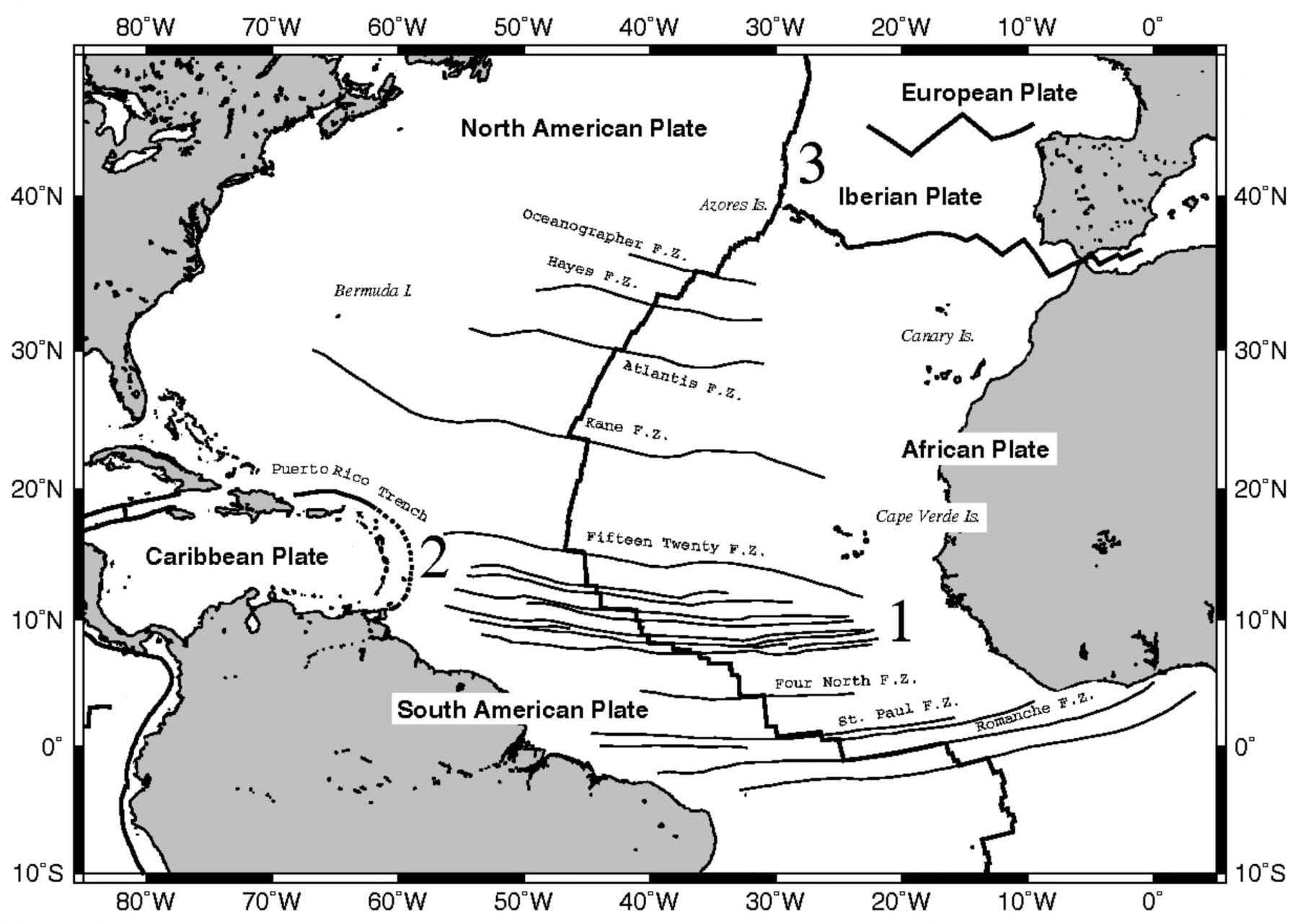

Fracture zones along the Mid-Atlantic Ridge in the North Atlantic Ocean. These fracture zones extend from the ridge, all the way to continental or subducted end of the plate. Credit: NOAA
Fracture zones along the Mid-Atlantic Ridge in the North Atlantic Ocean. These fracture zones extend from the ridge, all the way to continental or subducted end of the plate. Credit: NOAA

Along mid-ocean ridges, such as the Mid-Atlantic Ridge, a network of divergent and transform boundaries exist, where volcanism and earthquakes occur. However, further away from the ridge, inactive extensions of the transform boundaries exist, called fracture zones.

Oceanic crust age differences and ridge-ridge transform faulting associated with offset mid-ocean ridge segments lead to the formation of fracture zones.

Oceanic crust age differences and ridge-ridge transform faulting associated with offset mid-ocean ridge segments lead to the formation of fracture zones. Credit: Bob Stern, UT, Dallas/Wikipedia

Convergent Plate Boundaries

When lithospheric pates converge, the place with thinner, less bouyant crust usually descends (subducts) beneath the other plate. The region where a plate descends deeply within the mantle is called a subduction zone.

Advertisements

The general premise of convergent plate margins is that at boundaries where plates move toward one another, one plate (the denser or heavier plate) moves under, or subducts, under the more buoyant or “lighter” plate. There are three sub-types of convergent plate boundaries: oceanic-oceanic, oceanic-continental and continental-continental.

Oceanic-Oceanic Convergence

Oceanic-Oceanic Convergence Diagram, from USGS & IRIS.
Oceanic-Oceanic Convergence Diagram, from USGS & IRIS. Note that the lithosphere is the crust, although it may seem like a separate entity in the diagram.

When two oceanic plates converge, one plate subducts beneath the other. Generally, two features are formed: a trench, where the oceanic plates at the bottom of the ocean meet, and a volcanic island arc. This is because water being released from the subducting slab facilitates melting of the overlying mantle. The melt rises to form volcanoes.

In areas where there is significant sediment accumulation on the base of the seabed, this sediment is incrementally scraped off and form accretionary wedges which can form islands, such as Barbados. A depression between an accretionary wedge and an island arc, which tends to accumulate sediment, is called a forearc basin.

In the Lesser Antilles, all of these features exist. To the east and north of the Caribbean Islands, the Puerto Rico Trench exists. Though there is a subtle trench to the East of the Lesser Antilles, the significant accumulation of sediment from the ­­Orinoco River makes this trench and the depression between the acretionary wedge and island arc less pronounced. Nearly all of the Eastern Caribbean islands are volcanic in origin, with most having active volcanism presently. Lastly, the accretionary wedge is responsible for the formation of islands such as Barbados, which rises approximately 25 millimeters every 1000 years.

Oceanic-Continental Convergence

Oceanic-Continental Convergence Diagram, from USGS & IRIS.
Oceanic-Continental Convergence Diagram, from USGS & IRIS. Note that the lithosphere is the crust, although it may seem like a separate entity in the diagram.

At this boundary, the denser oceanic plate subducts beneath the more buoyant continental plate. Similarly to oceanic-oceanic convergence, a deep-sea trench, accretionary wedge, a forearc basin and volcanism (albeit continental volcanism) is common. Off the coast of South America along the Peru-Chile trench, the oceanic Nazca Plate is being subducted beneath the South American Plate. In turn, the overriding South American Plate is being lifted up, creating the towering Andes mountains.

Continental-Continental Convergence

 Continental -Continental Convergence Diagram, from USGS & IRIS.
Continental -Continental Convergence Diagram, from USGS & IRIS. Note that the lithosphere is the crust, although it may seem like a separate entity in the diagram.

At a continental-continental convergent zone, the thinner, oceanic crustal part of the downgoing plate is consumed through subduction initially. Then, the thicker, more bouyant crusts meet and are too light to be subducted. Instead, the thick crusts are deformed, buckling and pushed upward or sideways. If convergence continues, once thick continental crust block may thrust underneath the other, resulting in a broad region of high elevation. An example of this is the Himalayan mountain range. It dramatically demonstrates one of the most visible and spectacular consequences of plate tectonics. The Himalayas, towering as high as 8,854 m above sea level, form the highest continental mountains in the world.

Advertisements

Hotspots

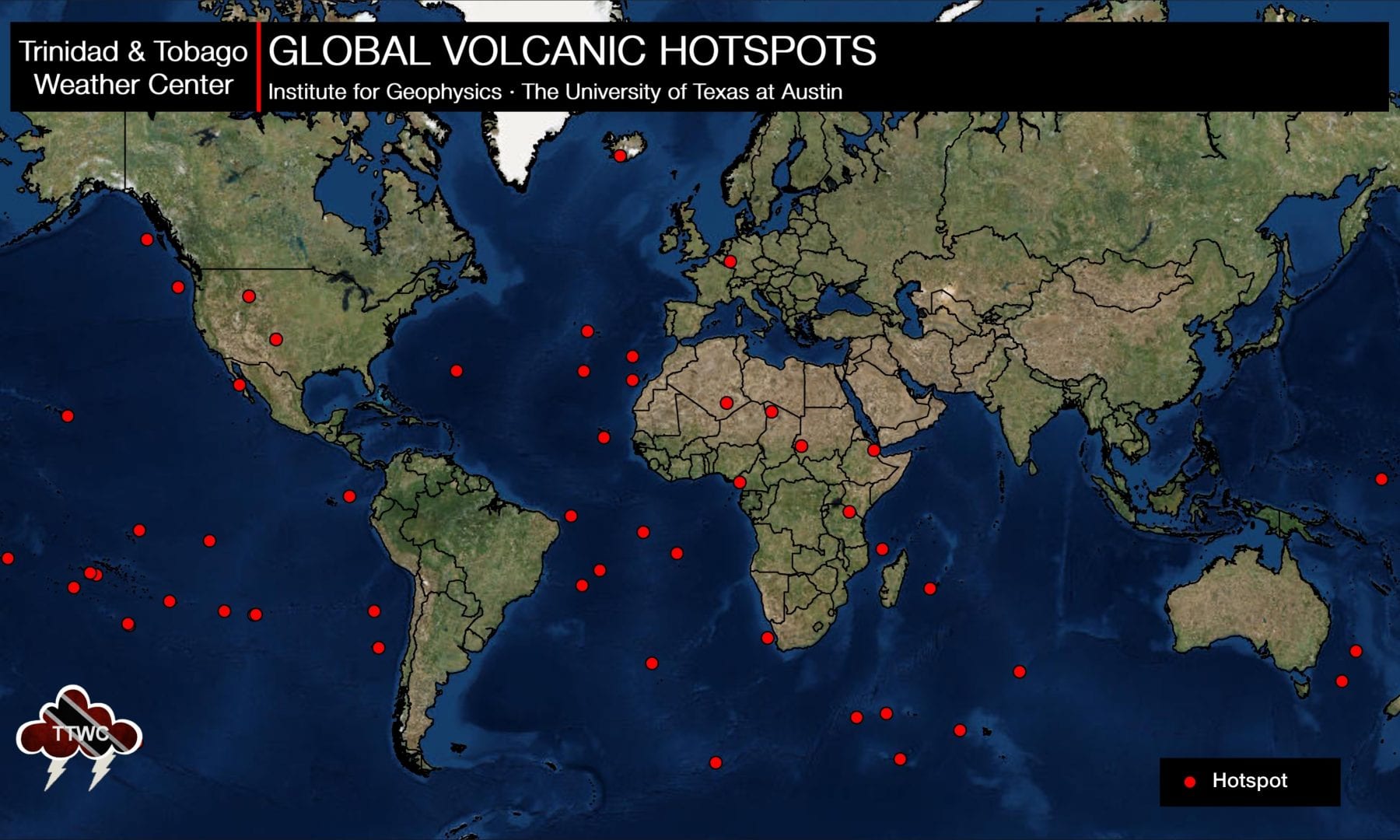

Global volcanic hotspots
Global Volcanic Hotspots

A “hotspot” is a region in the mantle where magma forms due to a “plume” of heat, from deep within the mantle. These plumes are fairly narrow and are thought to be fixed, relative to the deep mantle, as well as to one another.

At the surface, these plumes of intense heat melts the lithosphere, producing volcanism, sometimes far away from plate boundaries, where volcanoes are expected and common. As the hotspot is thought to be fixed, and plates are always moving, volcanoes get progressively older away from the largest and most active volcanoes. This can be used as a tool to track plate movements over millions of years. A good example of this is the Hawaiian Island Chain.

The trail of underwater mountains created as the tectonic plate moved across the Hawaii hotspot over millions of years, known as the Hawaiian-Emperor seamount chain, or the Emperor Seamounts.
The trail of underwater mountains created as the tectonic plate moved across the Hawaii hotspot over millions of years, known as the Hawaiian-Emperor seamount chain, or the Emperor Seamounts.
